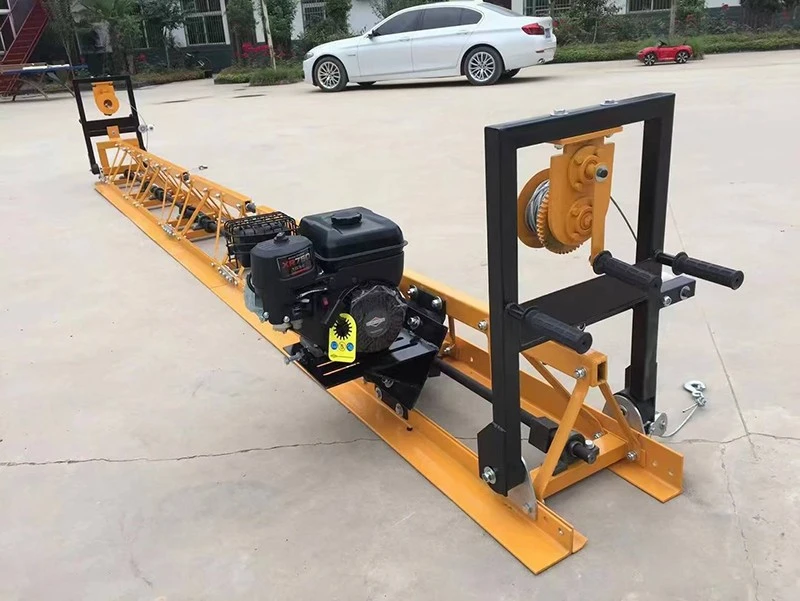

Self-leveling Truss Vibrating Screed

High-frequency compaction expert: frame vibration beam creates solid concrete pavement

The durability of concrete pavement starts with excellent density. Our frame vibration beam, which is specially designed for high-standard pavement projects, combines cutting-edge high-frequency vibration technology with solid and reliable quality. It is your professional partner in shaping high-density and high-strength concrete pavement.

High-frequency array, dense and flawless

The core advantage of the equipment lies in its high-frequency array integrated vibration system. Multiple groups of high-frequency vibrators are scientifically arranged to form a powerful and uniform excitation force field along the length of the beam. When working, high-frequency vibration energy is efficiently transmitted to the deep layer of the concrete mixture, strongly driving the aggregate to be closely arranged, while maximally expelling the internal trapped air and free water. This significantly reduces the porosity, greatly improves the final density, compressive strength and surface wear resistance of the concrete, and essentially ensures that the pavement is long-lasting and flat, without hollows and cracks.

Strong power, continuous escort

Excellent vibration effect is inseparable from long-lasting and stable power support. We offer a variety of top-level power options: including economical and reliable domestic Jialing engines, Honda engines known for their excellent quality, and Briggs & Stratton engines widely recognized in the professional field. No matter where you are or what your project requirements are, you can choose a "heart" with strong power and long-lasting operation to ensure that the vibration system continues to operate efficiently during high-intensity construction.

Flexible architecture, easy to deal with
Adopt forward-looking modular design. The basic unit is 1 meter long (size 1000*300*500MM, weight 35KG), and "easy connection" is achieved through an easy-to-use directional connecting shaft. Users can freely expand and splice the equipment from 1 meter to a maximum of 9 meters according to the actual road width requirements, just like assembling building blocks. This ability to change on demand perfectly adapts to projects of different scales and greatly improves equipment utilization and construction flexibility. The adjustable height function of the beam body further meets the precise requirements of different pavement thicknesses.

Solid foundation, safe and durable

The main structure of the equipment is made of thickened high-quality angle steel with precision welding, which has strong rigidity and excellent torsional and vibration resistance, providing a stable and safe platform for high-frequency operations. Detailed protection is also in place: special thickened protective cover nuts are used at key connection points to effectively seal the threads, prevent cement slurry from invading and causing bolts to rust, save worry and effort in maintenance, and greatly extend the service life of the equipment.

Choosing this frame vibration beam is to choose to empower quality with technology. It builds a solid road surface with high frequency, adapts to various needs with modularity, and protects construction safety with its solid body. It is a reliable tool for you to achieve high-quality concrete pavement projects. Let every vibration add points to the quality!
