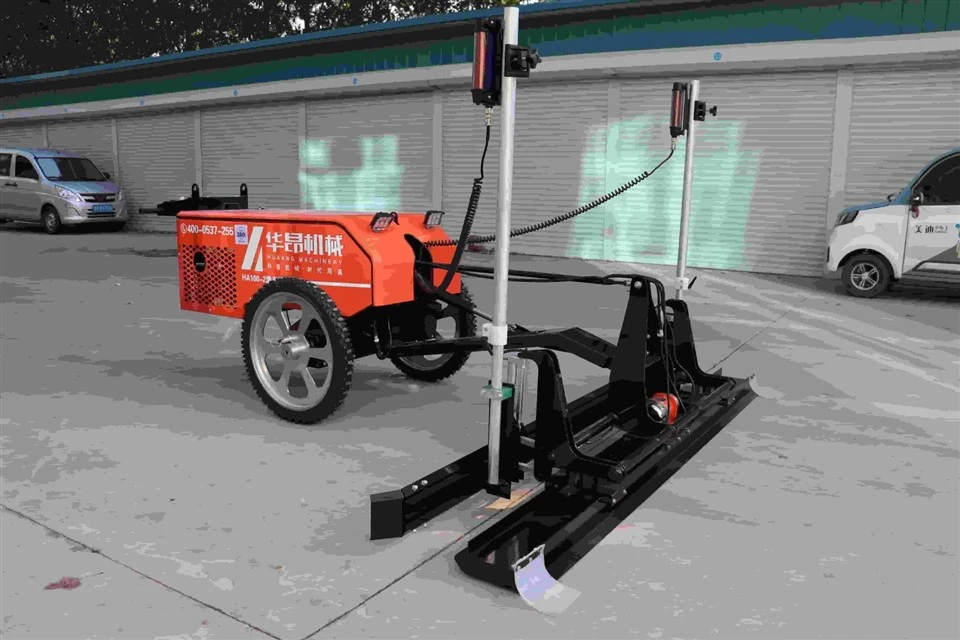

Concrete Leveling Machine

concrete leveling machine Products Description The concrete leveling machine 3.0KW power output is strong and stable, with a high power conversion rate, avoiding problems such as incomplete leveling and work interruptions caused by insufficient power. Compared with ordinary motors, it has a...

Send Inquiry

Description

concrete leveling machine

Products Description

Model	Jialing/Honda engine (manual/electric start)
Power	3.0KW
Fuel volume	17L (18 hours for construction)
Fuel consumption	0.8-1.3L/h
Laser emission system	Swiss Leica transmitter/Japanese Topcon transmitter/Shuangpo transmitter
Laser receiving system	Swiss Leica receiver/German Komec receiver
Laser control system	Japanese Mitsubishi/American Danfoss laser control system
Control effect of laser system	Plane, slope or double slope (3D)
Laser system control mode	Automatic control of laser micro-system to realize automatic leveling
Suspension mode	Flat head independent suspension system (can maintain fuselage balance in complex engineering)
Vibration plate width	2525mm
Leveling thickness	Standard 680 tire 50-250mm/optional 980 tire 50-400mm
Exciting force	2000N
Vibration motor speed	3600rpm
Travel drive	Servo drive motor
Walking mode	Automatic travel of electric control servo system
Walking speed	0-28m/min
Working speed	4m-20m/min
Tail wheel control mode	Manual lifting
Travel tire	Solid anti-skid and stab-resistant narrow tire/optional (inflatable wide tire)
Fuselage size	3200x2700x1120mm
Fuselage weight	260kg

The concrete leveling machine 3.0KW power output is strong and stable, with a high power conversion rate, avoiding problems such as incomplete leveling and work interruptions caused by insufficient power. Compared with ordinary motors, it has a higher start-up success rate, lower noise, and longer service life.

Utilizing a servo drive motor and an electronically controlled servo system for automatic movement, the power transmission is smooth and the response is rapid. Compared with ordinary drive motors, it has lower energy consumption and less wear, reducing later maintenance costs.
