laser screed with Topcon system
Products Show
Specifications
| Model | Briggs Stratton engine imported from the United States | Suspension mode | Fixed |
| Power | 25.73KW/35HP | Vibration plate width | 2955mm |
| Oil volume | 2.3L | Leveling thickness | 680 tires 50-300 mm |
| Tank volume | 45L | Hydraulic excitation force | 3000N |
| Fuel consumption | 4-7L/h | Vibration motor speed | 4000rpm |
| Laser emission system | Double slope transmitter/Swiss Leica transmitter/optional (American Tianbao transmitter) | Travel drive | Planetary reducer |
| Laser receiving system | Swiss Leica receiver/German Komec receiver/optional (American Tianbao receiver) | Intelligent travel control system | One-button cruise control |
| Fuselage size | 3500x3300x1700mm | Walking speed | 0-60m/min |
| Fuselage weight | 1100kg | Working speed | 3m-30m/min (adjustable speed) |

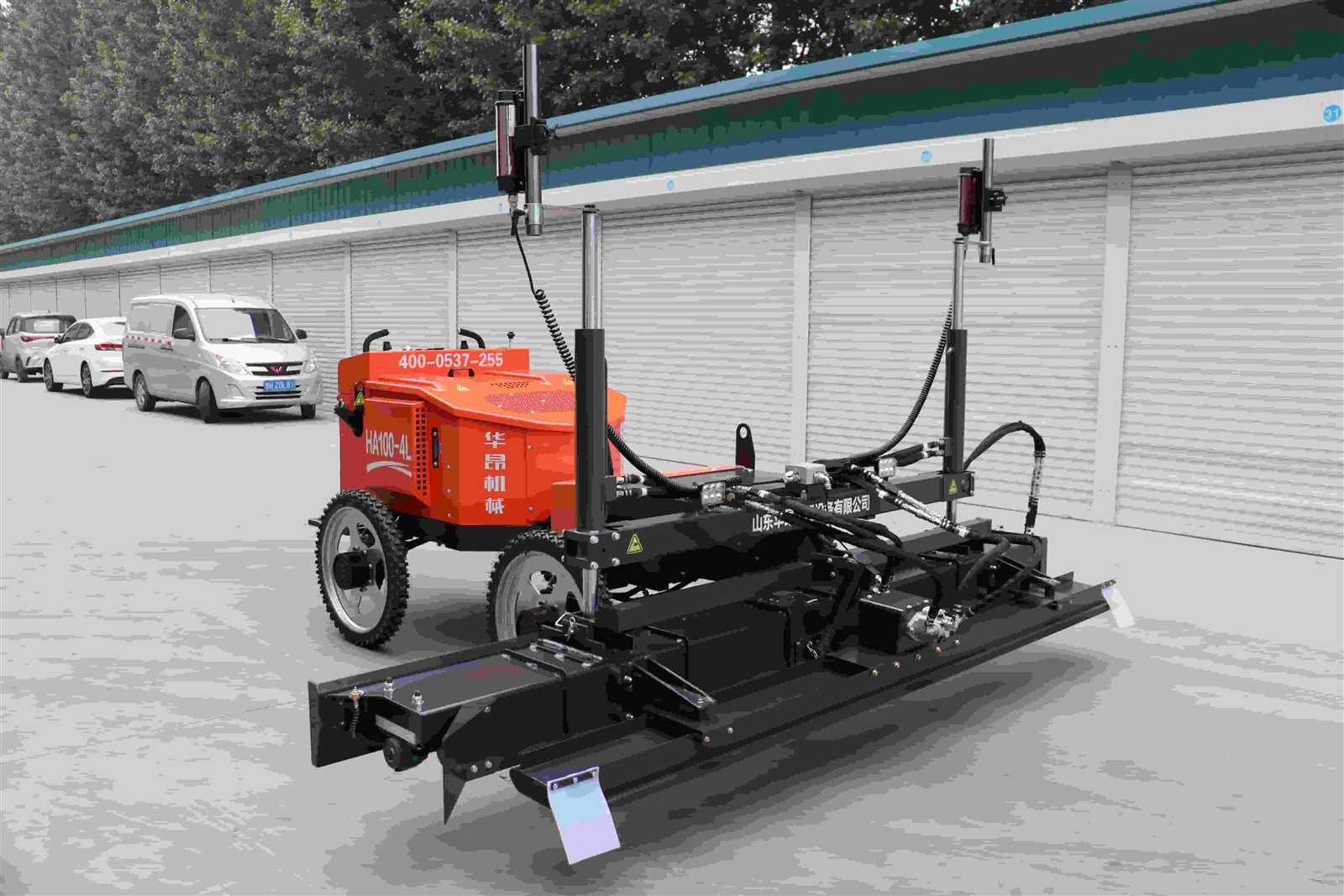

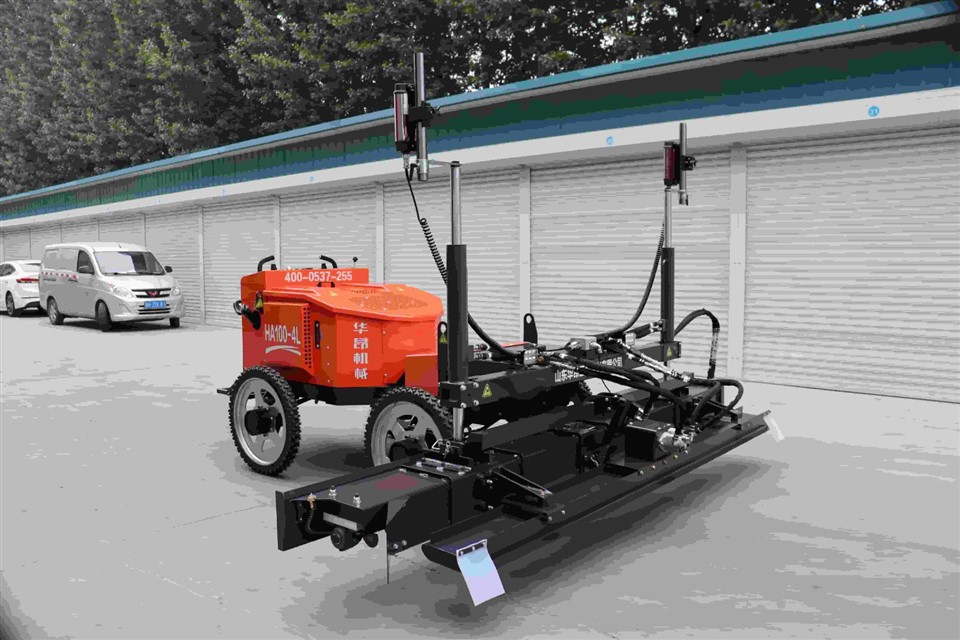

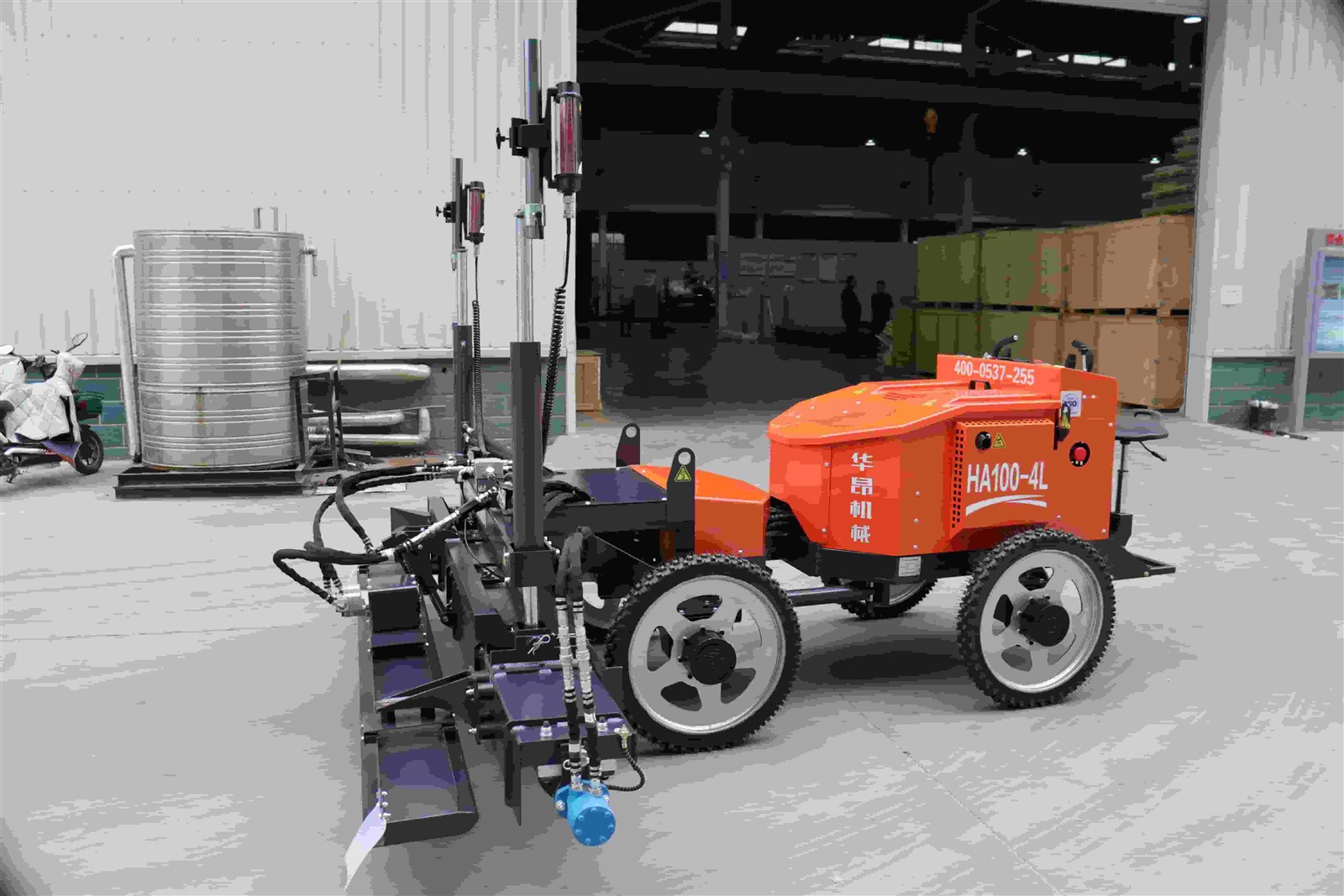

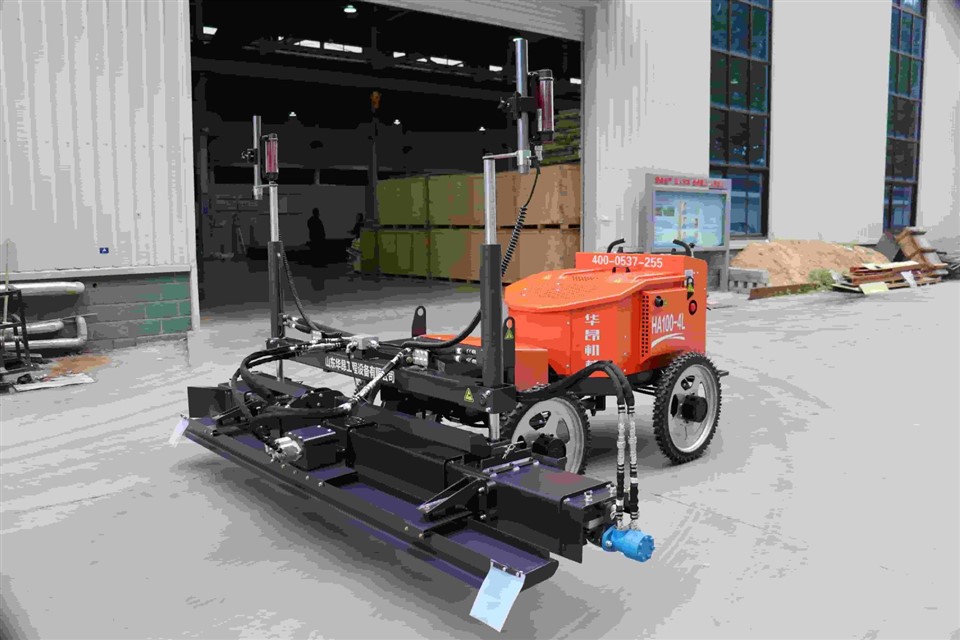

laser screed with Topcon system Machine
Laser Screed With Topcon System Premium Imported Power Configuration: Equipped with an original U.S.-imported Briggs & Stratton engine, delivering a robust 25.73 kW (35 HP) of power. This ensures ample power, stable operation, and exceptional durability, preventing any performance fatigue even during heavy-load operations on construction sites.
Economical Fuel Consumption & Extended Range: Features a 45L fuel tank capacity and a 2.3L engine oil capacity. With a working fuel consumption of only 4–7 L/hour, it offers significant fuel savings and energy efficiency. The large-capacity fuel tank design supports prolonged, continuous construction operations, minimizing downtime caused by frequent refueling stops.
World-Class Laser Leveling Systems: Offers optional laser emission and reception systems from leading international brands-Switzerland's Leica, Germany's Moba, and the U.S.'s Trimble. When paired with the Danfoss laser control system, this configuration delivers the quality of top-tier global brands, ensuring maximum precision and accuracy.
Multi-Dimensional, High-Precision Leveling: Supports flat, single-slope, and dual-slope 3D leveling modes. Fully automated via a laser microsystem, it enables one-touch, unmanned automatic leveling, resulting in minimal surface flatness error during construction.
Laser Screed With Topcon System High-Efficiency Vibration and Compaction: Generates a hydraulic excitation force of up to 3000 N, driven by a vibration motor rotating at 4000 rpm. The extra-wide 2955 mm vibrating plate ensures dense and uniform compaction, resulting in high-quality floor finishes free from voids or cracks.
