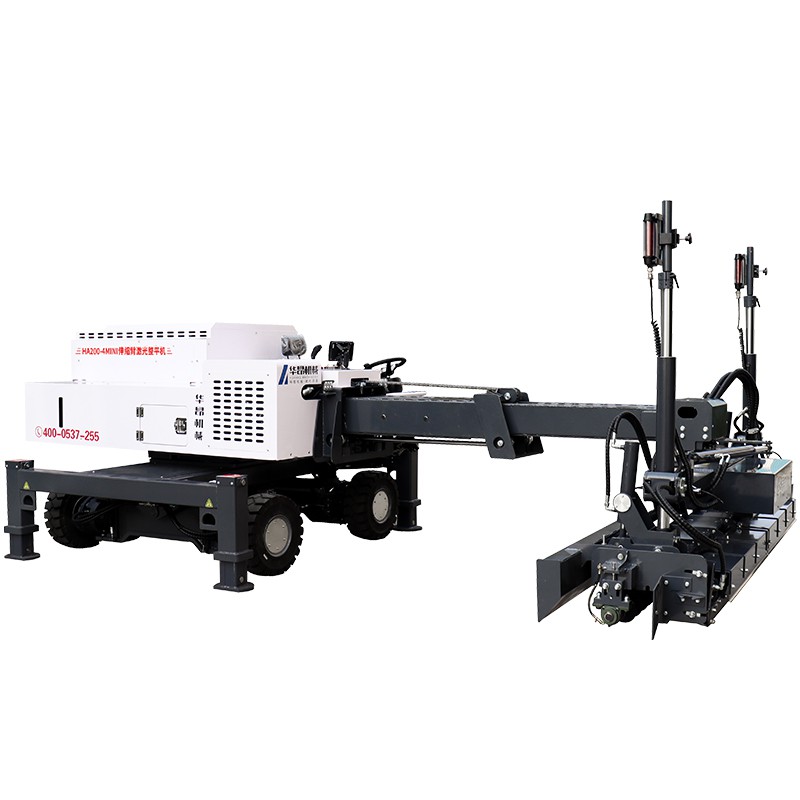

360° Telescopic Arm with Rapid Rotation
Featuring a 6-meter extendable arm and a high-speed rotating platform, the system delivers exceptional maneuverability for efficient concrete placement.
360° Rotation & Swing Function – Enables precise maneuverability for seamless leveling around obstacles and tight spaces.
Adaptive to Complex Layouts – Rotating/swinging head allows flexible adjustments for curved or irregular paths.
360° Workspace Access – Rotates within its own footprint for obstacle-free operation
360° Infinite Rotation – Unmatched Agility in Construction
Application Benefits
Perfect for large-area concrete finishing
Ideal for composite material laying
Essential for tilt-slab construction

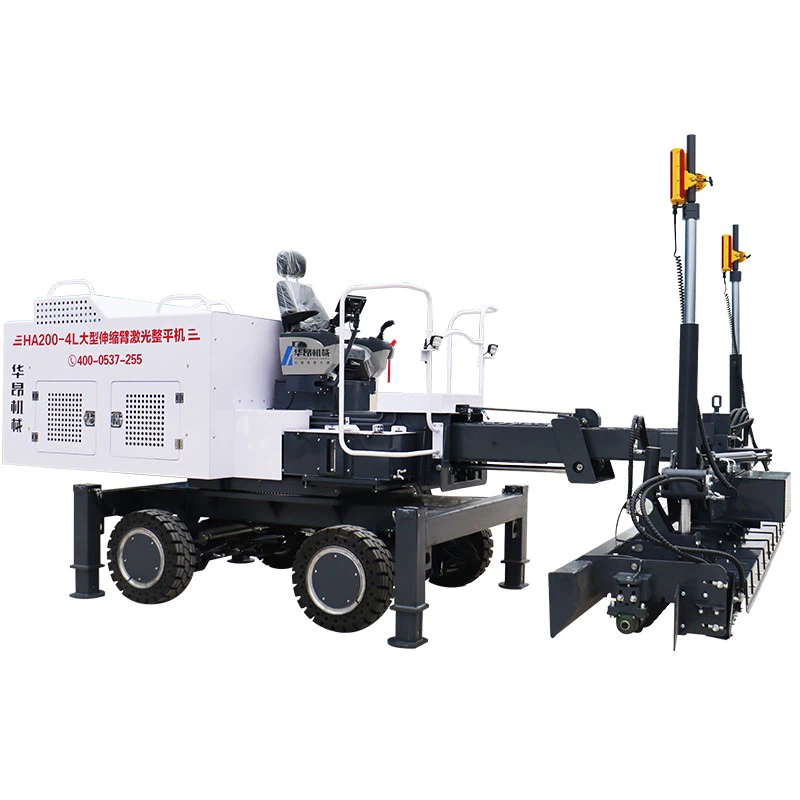

360° Rotating Telescopic Arm System
Key Features
Full-Rotation Telescopic Boom
Full 360° Continuous Rotation with auto-lubricated slew bearing
Enhanced Articulation Range:
45° left/right swing (horizontal)
60° vertical tilt adjustment
Why Choose Our Manufacturing?
1. 9 Years Specialization - Focused solely on concrete finishing tech
2. CE/ISO Certified Production - 100% factory-direct quality control
3. 1,200+ Machines Deployed across 18 countries
4. 30% R&D Investment - Leading industry innovation
5. Complete In-House Capabilities
Specifications
|
Engine Model |
Yanmar 4TNV94L |
|
Engine Type |
Diesel Engine, 4-stroke,water cooling, Four Cylinder |
|
Power |
38.9 kW / 53 hp |
|
Fuel Capacity |
110 L |
|
Fuel Consumption |
5L/h |
|
Rotation |
360 degree |
|
Outrigger |
Self-leveling of four legs |
|
Seat Position |
Left Front |
|
Steering Mode |
Front Wheels/ Four Wheels/ Crab Type |
|
Drive |
Hydraulic 4WD |
|
Boom Length |
6 meter |
|
Control Mode |
Handle , Column Shift |
|
Laser System |
Topcon, Moba |
|
Working head Material |
Magnesium Alloy |
|
Flathead Height |
500mm |
|
Control Accuracy |
1.5mm more or less |
|
Transportation Dimensions |
7300x2250x2300mm |
Advantages
Yanmar Power
Powered by a Yanmar turbocharged diesel engine, the machine delivers 20% greater fuel efficiency compared to conventional models without compromising power. The intelligent variable displacement pump dynamically adjusts hydraulic flow to match workload demands, reducing energy consumption by up to 30% while maintaining peak performance.
Automatic Stabilization
Self-leveling hydraulic outriggers compensate for 15° slope variations at the push of a button
Real-time load monitoring prevents overpressure on unstable ground
High Efficiency & Effortless Operation
The Boom Laser Screed redefines productivity with its intuitive multi-function control handle, enabling operators to master all functions quickly. Its ergonomic design minimizes fatigue during extended use while ensuring precise command over every operation.
Details
The outrigger support and self-leveling system ensure smooth and stable body rotation around the axis.

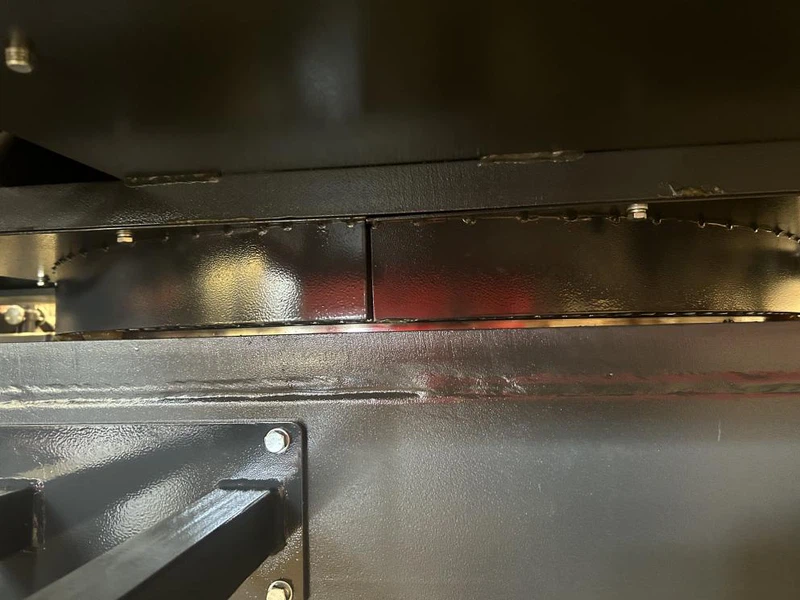

The saw-tooth circle seat ensures a stable rotation base, blending modern engineering with a proven traditional design.
The fully hydraulic system provides multidirectional power allocation to the body frame with independent rotation capability.
Working Case
